Ultrasonic Level Sensor For Septic Tank Etc.

Product Categories
Sichuan Vacorda Instruments Manufacturing Co., Ltd
Contact Now

Ultrasonic Level Sensor For Septic Tank Etc.

Place of Origin : Sichuan, China (Mainland)

Brand Name : Vacorda

Model Number : HBLT-V

Supply Ability : 100 Piece/Pieces per Week

Packaging Details : Wooden box.

MOQ : 1 Piece/Pieces

Price : Negotiable

Certification : CE/TUV/ISO9001/SGS

After service : Twelve months

Certificate : ISO9001:2000

Display : 4 figures LCD

Power supply : DC20 ~32V >=30mA

Medium temperature : -40~80°C

Accurancy : 0.2% (full span )

Material of shell : AL

Material of sensor : PVC or PTFE

Delivery time : 3~15 days

Origin : Sichuan, China

Port : Shanghai/Shenzhen

Contact Now

Ultrasonic Level Sensor For Septic Tank etc.

Ultrasonic Level Sensor For Septic Tank Etc.

Application

Ultrasonic Level Sensor For Septic Tank Etc.

Product Description

Ultrasonic Level Sensor For Septic Tank Etc.

Product Features

1. Security: When measuring liquid with poison, explosion, corrosion, stress, easily volatile, easily leak, it does not use valves, pipe, joint. It is without leak source, and not contact tank of liquid and gas. It is very safe. Even in the state of instrument damage or maintenance, there is no possibility of leakage, poisoning or explosion.

2. Hygiene: Don’t contact with liquid (wine making, beverage, milk production, storage tanks, pipes) in the detection and monitoring projects, and no pollution.

3. Installation and maintenance convenient: installation is no fire, no clear tank, and no impact on production.

Technical Parameters

(1)Power supply: DC20~32V
(2)Output: DC4~20mA
(3)Working temperature: -40℃~+75℃
(4)Mode of indication: 4 digit LCD
(5)Parameter set up: 3 induction buttons
(6)Mode installation: Whorl, Flange
(7)Accuracy: 0.2% Span(in air)
(8)Beam angle: 8°, 5° (3db)
(9)Pressure range: ±0.1MPa
(10)Protect grade: IP67
Detailed Images

Ultrasonic Level Sensor For Septic Tank Etc.

Ultrasonic Level Sensor For Septic Tank Etc.

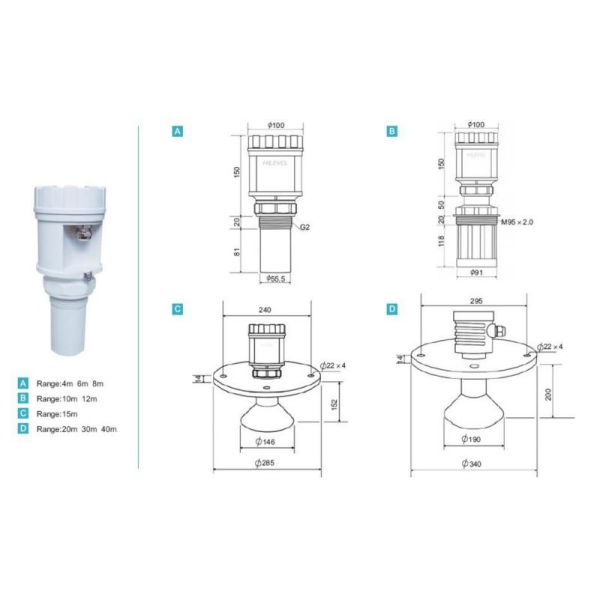

For the range of 20m, 30m, 40m, the size of the orifice on the tank should be larger than the size of the DN200 flange. And the length of the connecting pipe is under the flange

Company Information

Ultrasonic Level Sensor For Septic Tank Etc.Ultrasonic Level Sensor For Septic Tank Etc.

Packaging & Shipping

Ultrasonic Level Sensor For Septic Tank Etc.
